Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor

Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RJ180
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RJ180
Measuring Range:
-100kPa...0kPa~10kPa...100MPa
Pressure Type:
Gauge Pressure, Absolute Pressure, Seal Gauge Pressure
Accuracy:
±0.5%FS
Long Term Stability:
±1
Nominal Pressure:
± 0.3% FS/year
Rated Operating Temperature:
-10℃~60℃
Temperature Measurement Error:
± 2 ℃ (temperature Function Optional)
Maximum Operating Temperature:
-30℃~85℃
Highlight:

High Light

Highlight:

Ip65 Pressure Sensor

,

Remote Pressure Sensor

,

Double Flange Pressure Sensor

Trading Information
Minimum Order Quantity:
1
Price:
USD320/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor



Product Introduction Intelligent pressure transmitters are used to measure the liquid level, density, and pressure of liquids, gases, or vapors, and then convert them into 4-20mA DC signal outputs. The intelligent pressure transmitter can communicate with the HART controller for setting, monitoring, or forming an on-site monitoring system with the upper computer. Suitable for process control and pressure measurement in industries such as petroleum, chemical, metallurgical, power, light industry, textile, building materials, hydrogeology, food, medicine, environmental control, etc. Intelligent pressure transmitter is a highly stable intelligent digital display transmitter product that is suitable for real-time pressure measurement and display. Adopting a dedicated sensor conditioning circuit, combined with internationally advanced piezoresistive pressure transmitter design and manufacturing technology, it can also output pressure and temperature signals that comply with the standard MODBUS-RTU protocol. Applied to outdoor sites with harsh environments, and requiring on-site observation of pressure display, zero shift, and range adjustment.

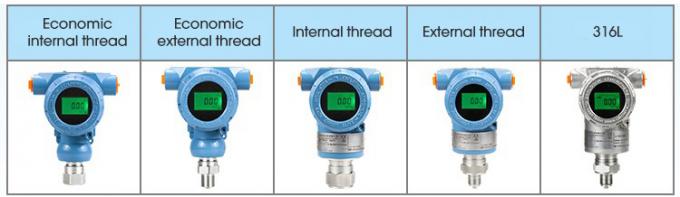

Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 0
Measuring range
-100kPa…0kPa~10kPa…100MPa
Pressure type
Gauge pressure, absolute pressure, seal gauge pressure
Overvoltage
1.5 times the full-scale pressure/110MPa (take the minimum value)
Accuracy
±0.5%FS
Long term stability
± 0.3% FS/year
Zero temperature error
≤±0.04%FS/℃ (≤100kPa) ;≤ ±0.03%FS/℃ (>100kPa)
Full temperature error
≤±0.04%FS/℃ (≤100kPa) ;≤ ±0.03%FS/℃ (>100kPa)
Output signal
RS485 interface (MODBUS-RTU protocol)
Rated operating temperature
-10℃~60℃
Temperature measurement error
± 2 ℃ (temperature function optional)
Maximum operating temperature
-30℃~85℃
Storage temperature
-40℃~85℃
Power supply
9V~28V DC
Display mode
4-digit 0.36 digital tube
Display range
-1999 ~ 9999
Insulation resistance
100V,100M
Vibration
5g,10Hz~200Hz
Impact
20g,11ms
Protection level
IP65
Weight
About 900g
Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 1

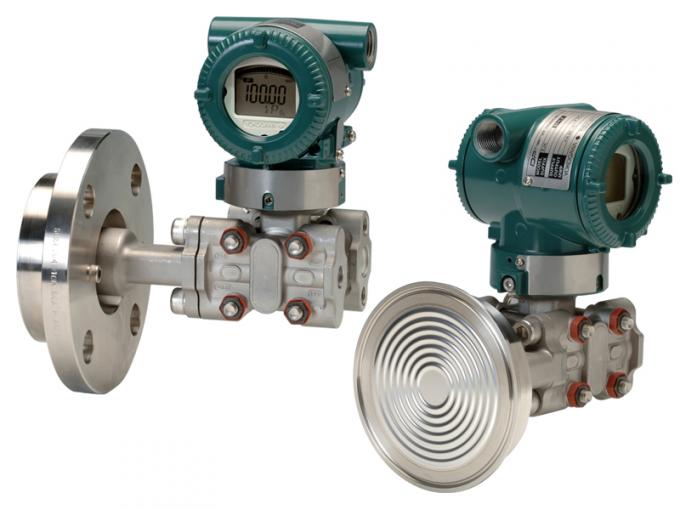

Yokogawa pressure transmitter EJA
Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 2

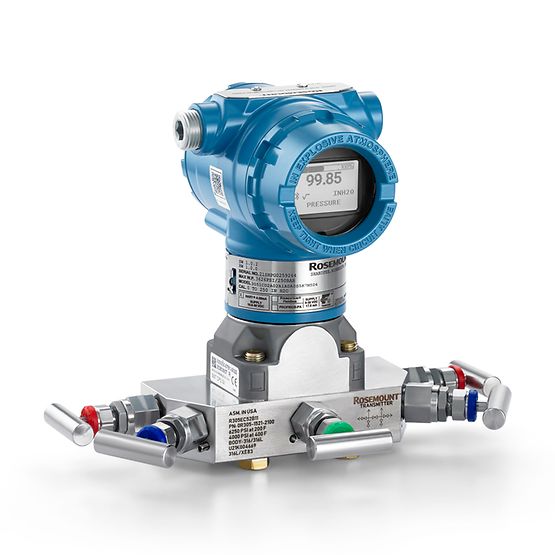

Rosemount pressure transmitter
Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 3

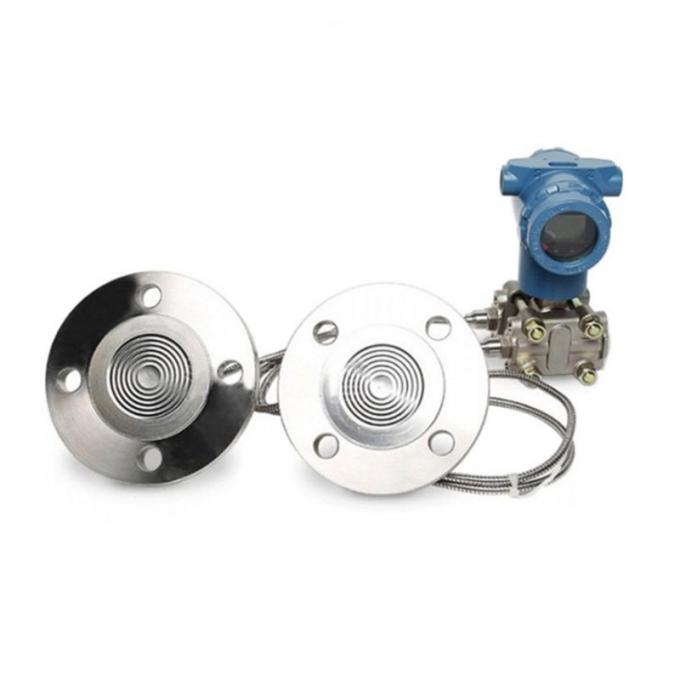

Pressure transmitter
Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 4

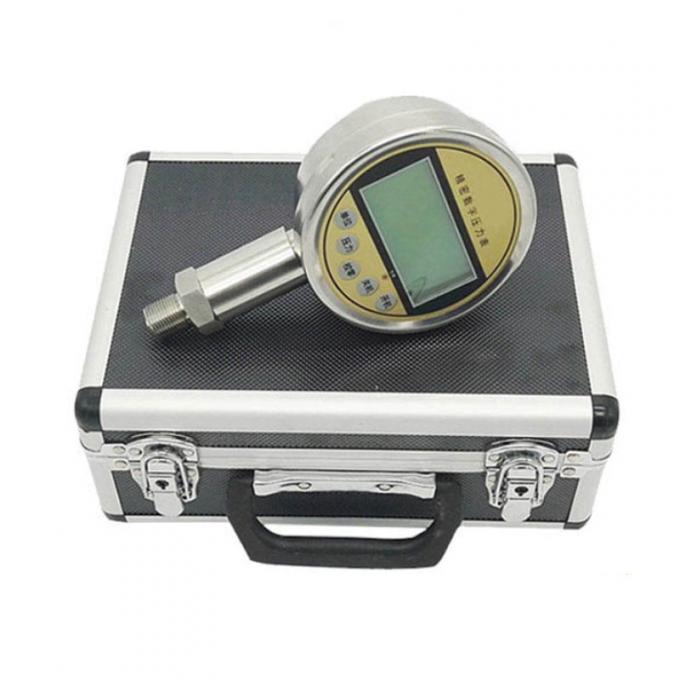

Pressure gauge
Product display
Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 5

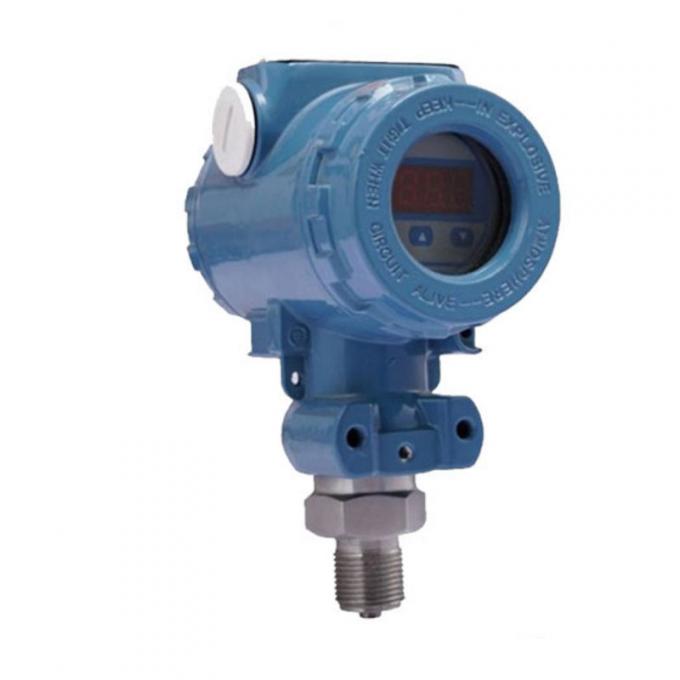

Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 6

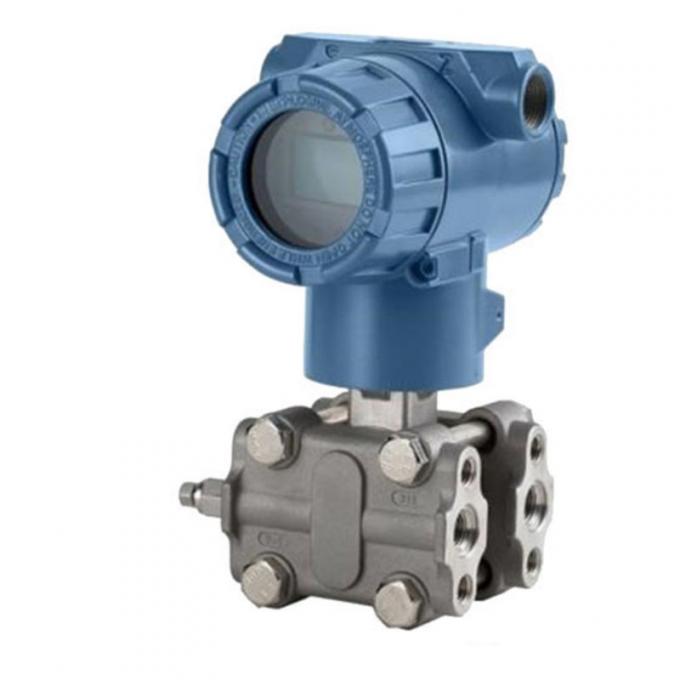

Ip65 Smart Pressure Transmitter With Double Flange Remote Single Crystal Silicon Pressure Sensor 7
