RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor

RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RPT243
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RPT243
Pressure Range:
-100KPa~260MPa
Accuracy:
0.05%, 0.1%, 0.2%
Power Supply:
Battery(Built In 3.6V Lithium Battery )
Output Signal:
SWSN Network /GPRS
Transmission Distance:
1000m
Frequency:
430/470MHZ
Working Environment:
Temperature:-20℃~60℃ Humidity: <90%
Highlight:

High Light

Highlight:

Wireless Pressure Sensor

,

LCD Display Pressure Sensor

,

Low Consumption Pressure Sensor

Trading Information
Minimum Order Quantity:
1
Price:
USD299~400/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

RPT243 Battery-powered Low Consumption LCD Display Wireless Pressure Sensor



Products Description
RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor 0

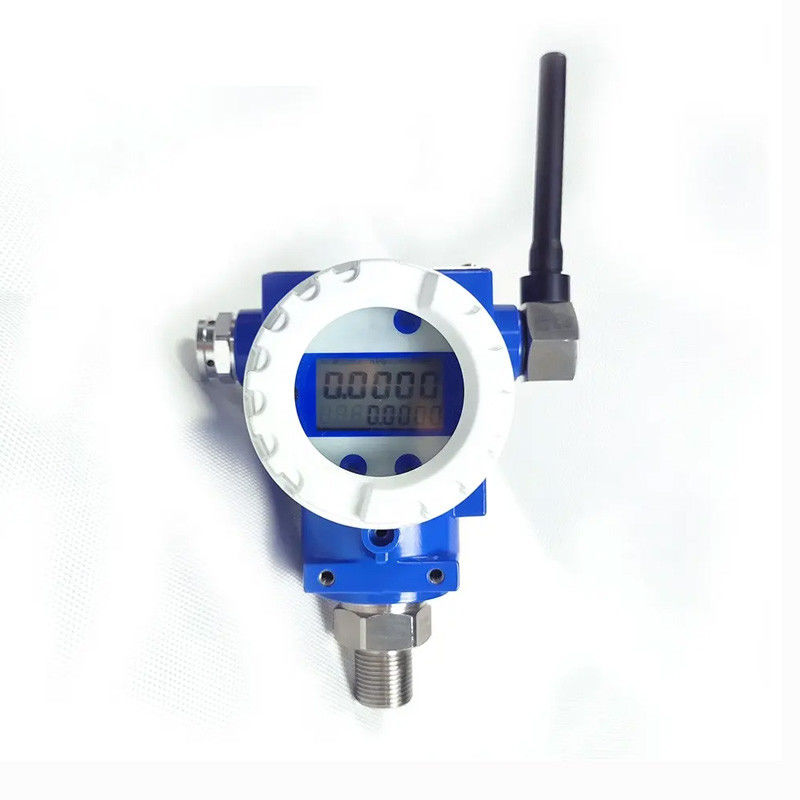

RPT243 Wireless pressure transmitter.
GPT243 wireless pressure transmitter is a high-precision, low-power radio transmission pressure measuring instrument independently developed by our company. Powered by lithium battery, IP65 waterproof cast aluminum housing, supporting data recording and data supplementary transmission functions, no wiring, no external power supply, saving the trouble of laying cable trays for conventional instruments, saving manpower and construction costs, it is a traditional pressure detection instrument The ideal upgrade product.

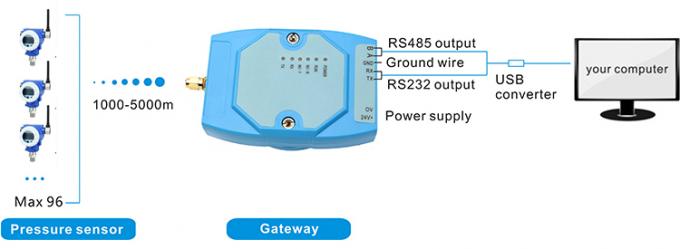

RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor 1
Product Paramenters
Range
Gauge:-100KPa~260MPa
Absolute:0~160kpa
Differential:0~3500kpa(Static pressure <20MPa)
Accuracy
0.25%,0.5%
Power supply
Battery(Built in 3.6V lithium battery )
Standby power
<0.03mA
battery life
Wireless Open :1-2 years
Wireless Off :2-5 years
Output signal
SWSN network; Lora
Frequency
430/470MHZ
transmission distance
1000m(open)
data transmition
delayed tx ,1-255 seconds is adjustable
Send deviation, deviation measured values and the last sent value is
greater than the set value is automatically sent
battery life
Data collected once every second, 1 year battery life at room temperature
Data collected once every minute, 10-year battery life at room temperature
Working environment
Temperature:-20~60℃
Humidity:<90%
Explosion levels
ExdIICT6(optioal)
Process connection
M20×1.5,1/2NPT etc
Wetted parts
SS316L
Dimension
115(W)*235(H)*110(D)mm
Protetion
IP65
Customer Photos

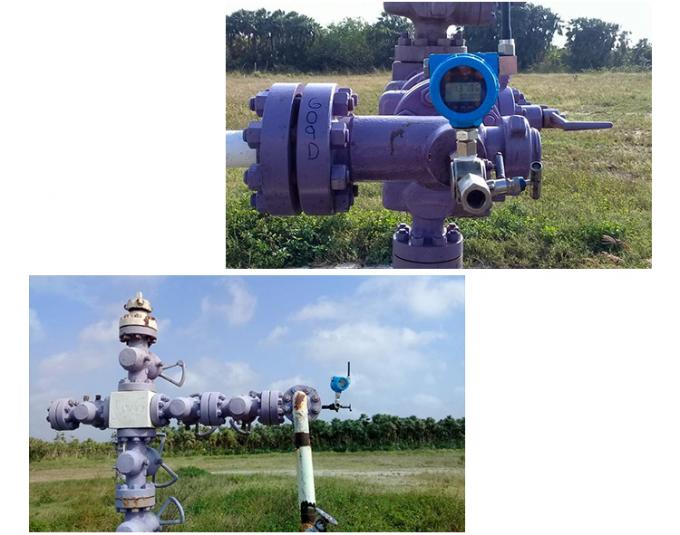

RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor 2
Oilfield pipeline pressure monitoring
The Mexican customer Tom purchased 100 GPT243 throughout the year for use in oilfield development and transportation projects. “GPT243 provides us with accurate pipeline pressure values to determine whether there is oil leakage in the pipeline. Compared with manual inspections, pipelines Maintenance and inspection are more convenient"

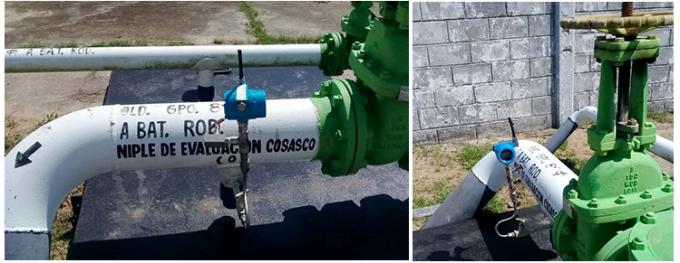

RPT243 Battery Powered Low Consumption LCD Display Wireless Pressure Sensor 3
