0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification

0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RPT202
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RPT202
Pressure Range:
0~600bar
Output:
4~20mA, 0~10V, 0.5~4.5V, 0~5V, 1~5V
Power Supply:
8~30VDC, 12~30VDC
Accuracy:
±0.5% FS
Long-term Stability:
±0.3%FS/Year
Medium Temperature:
-10℃ ~ 70℃
Highlight:

High Light

Highlight:

Diffused Silicon Oil Pressure Sensor

,

CE RoHS Pressure Sensor

,

600bar Pressure Sensor

Trading Information
Minimum Order Quantity:
1
Price:
USD22~30/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

RPT202 CE RoHS 600bar 0~5V Large Range Diffused Silicon Oil Pressure Sensor



Products Description
0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification 0
RPT202 large range pressure transmitter uses a piezoresisitve pressure sensing element and a special conditioning circuit with the characteristics of high reliablity and stability, outputs standard current and voltage signal. It has a reasonable product structure, high quality and its overall performance is stable and reliable. GPT202 pressure transmitter is suitable for many industries like machine made, Measurement and Control Technology, hydraulic and oil pressure, Petrochemical, and it is really cost-effective. we can also provide products that meet the requirements of our customers for their specified applications in a short period of time.

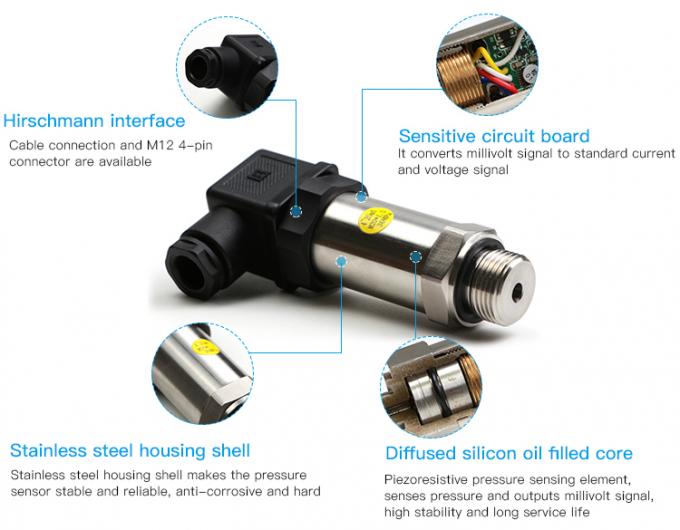

Product Details
0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification 1
Product Parameter
Pressure range (bar)
Max. Overload Pressure (bar)
Minimum Impact Pressure (bar)
0-250
400
500
0-400
600
800
0-500
750
1000
0-600
750
1000
Wire
2-wire
3-wire
3-wire
3-wire
3-wire
Output signal
4-20mA
0-10V
0.5-4.5V
0-5V
1-5V
Power supply
8-30V
12-30V
Consumption current
≤24mA
≤7mA
Load resistance
≤(U-8)/0.02 (Ω)
≥ 10kΩ
Transmission distance
< 1000m(@24V DC, load 250Ω
< 5m(@24V DC, load 10kΩ)
Accuracy
±0.5% FS
Long-term stability
±0.3%FS/Year(Maximum values are subject to standard and test baseline conditions, including linearity, hysteresis, and repeatability)
Reference conditions
Temperature:15℃ ~25℃Atmospheric pressure:860mbar~1060mbar
Relative humidity:45% ~75 % Power supply:24 V DC
Power influence
The zero and the range vary no more than ±0.005%FS/V
Overload influence
The zero and the range vary no more than ±0.05%FS/kΩ
Medium temperature
-10℃ ~ 70℃
Environment temperature
-10℃ ~ 70℃
Storage temperature
-40℃ ~ 80℃
Protection grade
IP65 / IP67
Pressure type
S,A
Zero temperature coefficient
±0.05%FS/℃ ( ≤ 1bar) ±0.02%FS/℃ ( > 1bar)
Full point temperature coefficient
±0.05%FS/℃ ( ≤ 1bar) ±0.02%FS/℃ ( > 1bar)
Anti-vibration
10g(@20Hz~2000Hz)(IEC 60068-2-6 Standard, under resonance condition, we can provide vibration resistance up to 20g model according
to customers’ requirements)
Impact resistance
100g/11ms(IEC 60068-2-27 Standard,Mechanical shock)
Service life
Maximum load cycle 10 million times
Insulation resistance
≥ 100MΩ@500V

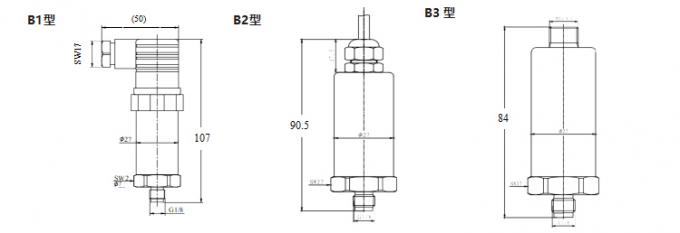

Dimension
0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification 2

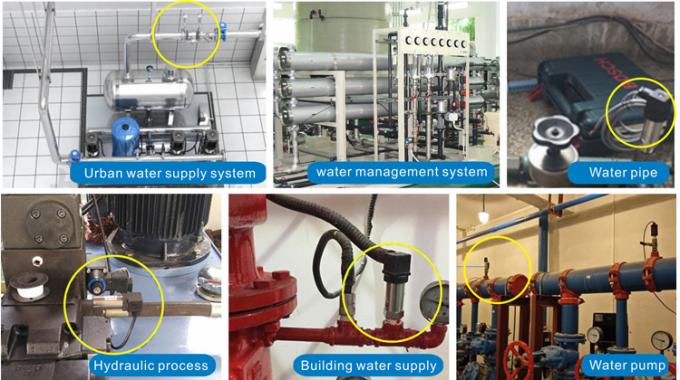

Application
0-600bar Pressure Range Diffused Silicon Oil Pressure Sensor RPT202 with 0.5-4.5V Output and CE RoHS Certification 3
