China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter
  • China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter
  • China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter
  • China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter
  • China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter

China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter

Product Details:
Place of Origin: CHINA
Brand Name: RUIJIA
Certification: CE
Model Number: RJMP51A
Detail Information
Place of Origin:
CHINA
Brand Name:
RUIJIA
Certification:
CE
Model Number:
RJMP51A
Material:
316L Stainless Steel
Measuring Range:
0~10kPa...60MPa
Power Supply:
15~30VDC
Output Signal:
4~20mA 4~20mA+HART, 4~20mA+RS485
Accuracy:
0.25%FS(typ.) 0.5%FS(max.)
Over Pressure:
150%FS
Pressure Type:
Gauge (G), Absolute (A), Sealed Gauge (S)
Protection Level:
IP65(OEM)
Highlight:

High Light

Highlight:

20mA Pressure Transmitter

,

2088 Housing Display Pressure Transmitter

,

HART Pressure Transmitter

Trading Information
Minimum Order Quantity:
1
Price:
USD15 ~60/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2 Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
Product Description

China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter




Industrial pressure transmitter

Features:
◆ A variety of output signals are optional;
◆ Anti-interference, anti-surge protection;
◆ High precision, good reliability, German chips;
◆ 316L stainless steel isolation diaphragm, integrated design;
◆ Intrinsically safe, in line with the requirements of ExiaII.CT6 of GB3836.4 standard

Product Overview:
AMP51A industrial pressure transmitter is a high-precision and high-stability pressure measurement product independently designed and produced by our company. The product adopts a silicon piezoresistive sensor with a stainless steel isolation diaphragm, with a special digital circuit, and outputs an integrated product of industrial standard signal through signal amplification, linear compensation, anti-interference, anti-surge protection and other signal processing.

Product Applications:
◆ Petrochemical industry
◆ Metallurgical electric power
◆ Measurement and control technology
◆ Hydraulic and pneumatic fields

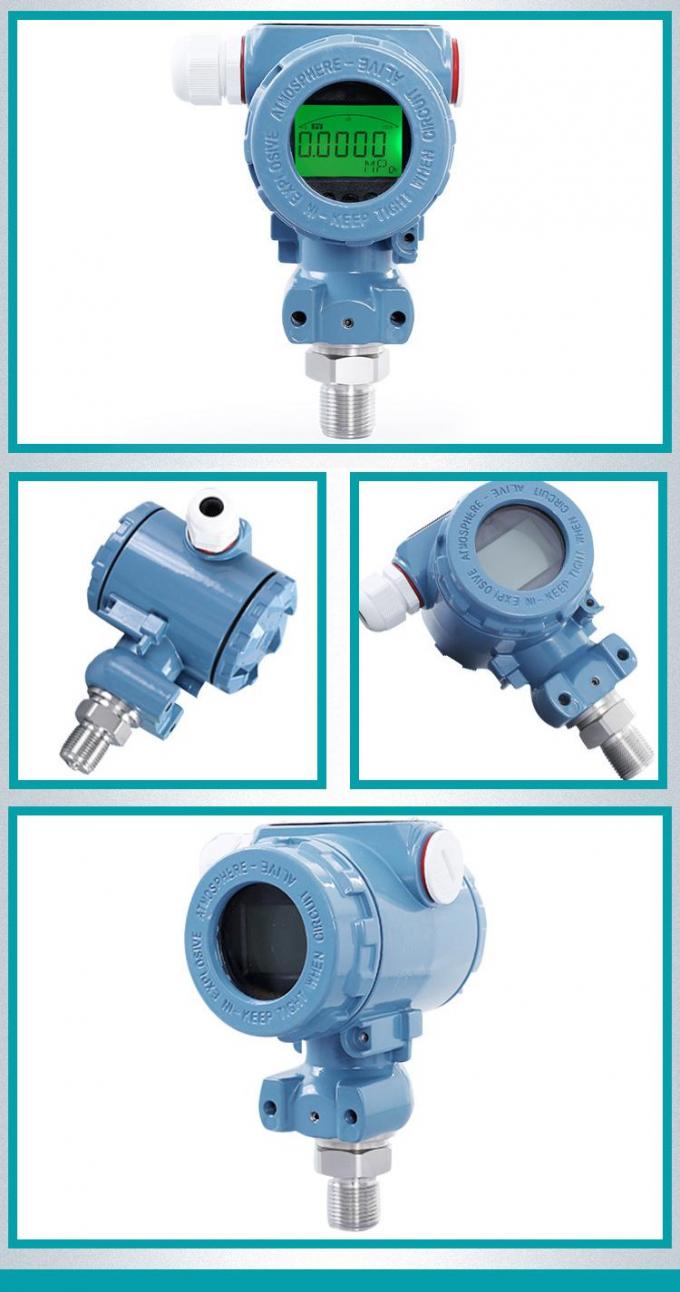

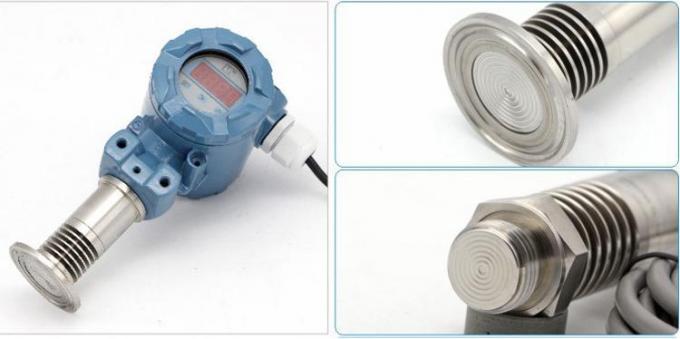

Details Images
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 0
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 1

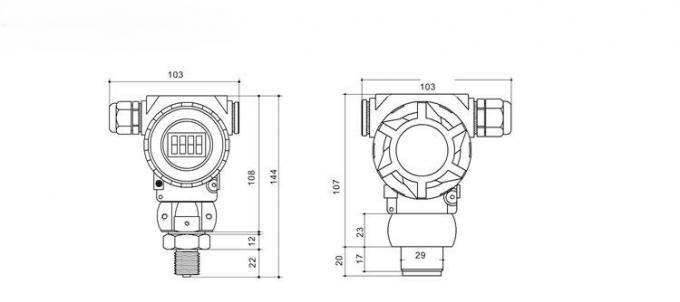

Drawing
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 2

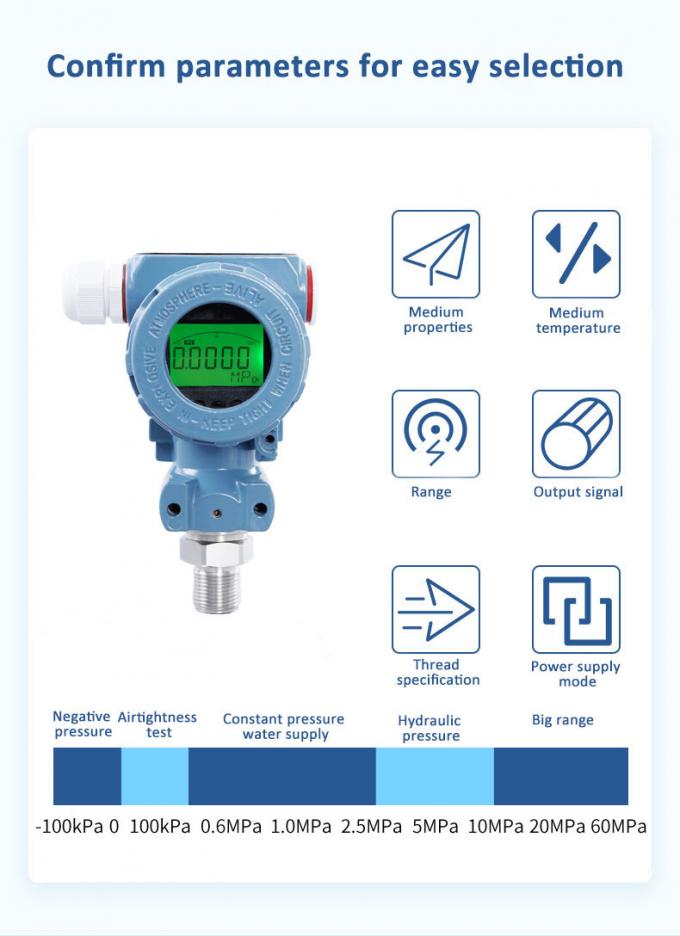

PRODUCT SPECIFICATIONS
Pressure range
0~60MPa


Pressure type
gauge (G), absolute (A), sealed gauge (S)


Overload pressure
150%FS


Accuracy
0.25%FS(typ.) 0.5%FS(max.)


long-term stability
≤0.3%FS/year


Operating temperature
-40°C~100°C


compensate temperature
0~+70 °C
operating temperature range
-20~+80 °C


storage temperature range
-40~+120 °C


Insulating resistance
≥100MΩ ( input 100Vdc)


load resistance
R≤(U-15)/0.02(for 4/20mA)


electrical interface
wiring terminal


Output signal
4~20mA 0~5VDC 1~5VDC 0~10VDC (OEM)


Power supply
5V, 12~30Vdc


pressure interface
G1/2, M20x1.5, customer request


material of pressure membrane
316L


protection
IP65


certification
CE ,ROHS


EMC
EMI:EN50081-1/-2, EMS: EN50082-2


temp.coefficient of zero
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)


temp.coefficient of span
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 3

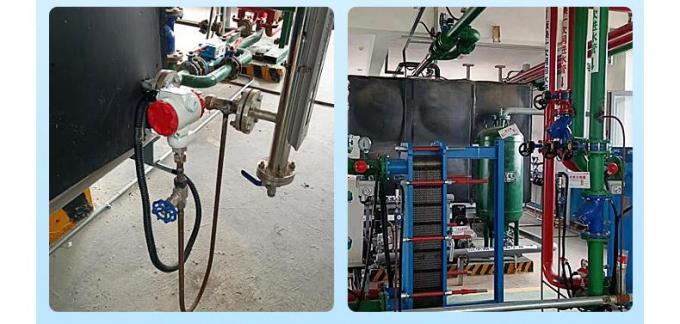

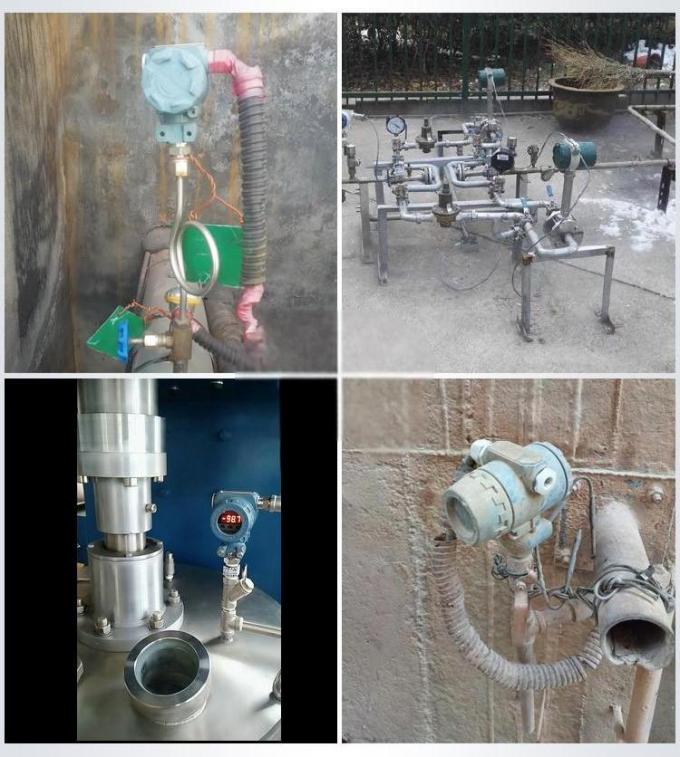

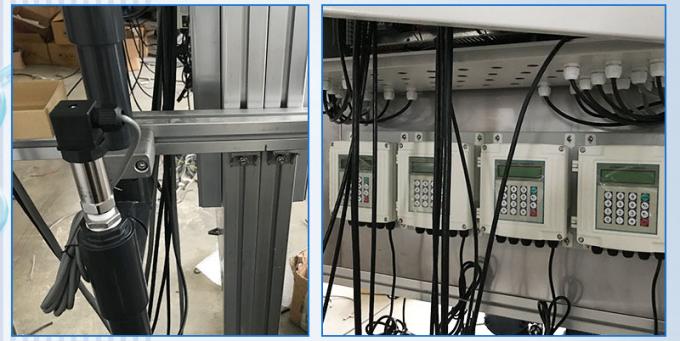

Application
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 4
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 5
China Manufacturer 2088 Housing Display 4-20mA RS485 HART Smart Diffused Silicon Pressure Transmitter 6



Process flowchart



25kg Aluminum Alloy Parallel Beam Load Cell Strain Type Lift Electronic Weighing Sensor 3



Packing & Shipping



25kg Aluminum Alloy Parallel Beam Load Cell Strain Type Lift Electronic Weighing Sensor 4



Company Information

25kg Aluminum Alloy Parallel Beam Load Cell Strain Type Lift Electronic Weighing Sensor 1

FAQ



1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.



2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.


3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.


4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.


5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.


6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.


7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
