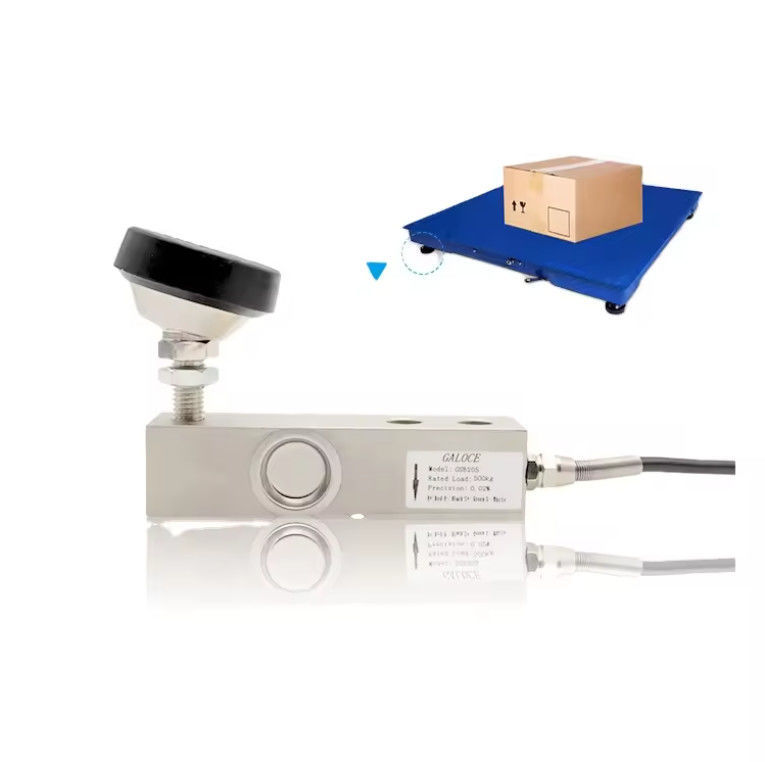

*Alloy steel material, spring wire, nickel plated surface, anti-corrosion,Glue seal,can do laser welding;
*M12 or M18 thread, sensitivity 2.0 or 3.0mV/V;
*One end is fixed and the other end is loaded with rubber legs and gaskets;
*Suitable for ground scale, electronic platform scale and other electronic weighing equipment..
Specification
|
Rated capacity
|
0.1,0.2,0.3,0.5,1,2,2.5,3,5(t)
|
|
Accuracy class
|
C3
|
Compensated Temp.Range
|
-10～+60℃
|
|
Comprehensive error
|
±0.02%F.S
|
Operating Temp.Range
|
-35～+80℃
|
|
Rated output
|
2.0/3.0±0.005mV/V
|
Excitation,Recommended
|
6～12VDC
|
|
Zero Balance
|
±1.0%F.S
|
Excitation,Maximum
|
18VDC
|
|
Linearity Error
|
±0.02%F.S
|
Safe Overload
|
150%F.S
|
|
Repeatability Error
|
±0.02%F.S
|
Ultimate Overload
|
200%F.S
|
|
Hysteresis Error
|
±0.02%F.S
|
Insulation Resistance
|
≥5000MΩ(100VDC)
|
|
Creep
|
0.02%F.S/15min
|
Cable
|
4 Color PVC Wires
|
|
Input Resistance
|
Input Resistance
|
Cable Length
|
Φ5mm×3m
|
|
Output Resistance
|
350±5Ω
|
Ingress Protection
|
IP65
|
|
Temp.Effect on Output
|
±0.02%F.S/10℃
|
|
Exc+:Red Exc-:Blac
|
|
Temp.Effect on Zero
|
±0.02%F.S/10℃
|
Sig+:Green Sig-:White
|
